🧩 Product Overview

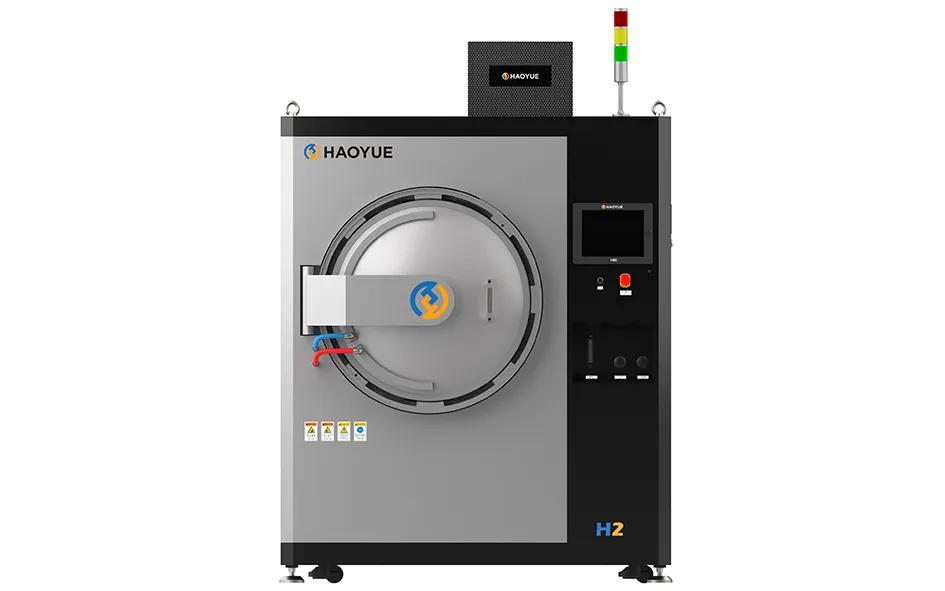

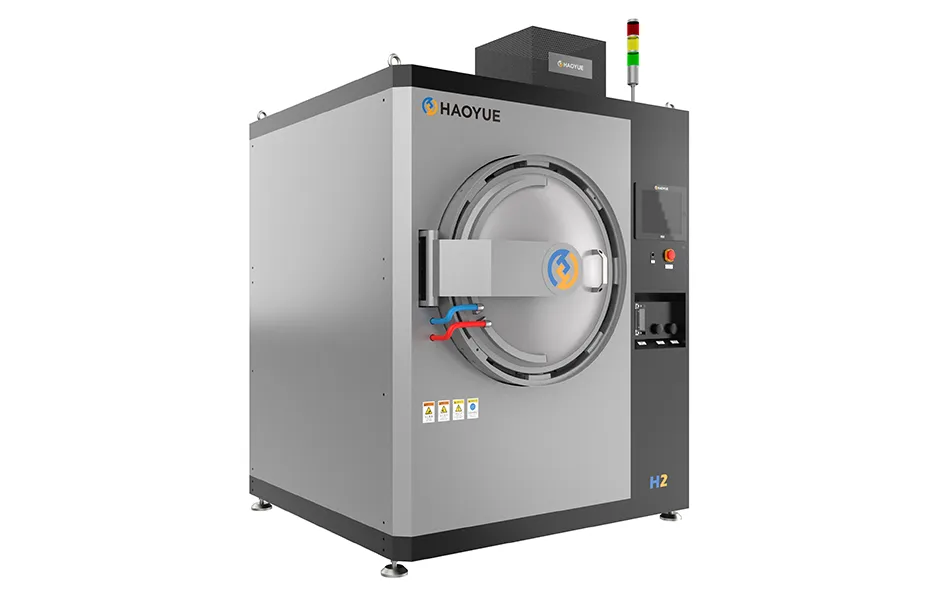

The H Series Laboratory Vacuum Hydrogen Furnace is a compact vacuum resistance furnace designed for high-temperature processing under hydrogen atmosphere in laboratory and pilot-scale environments.
This system uses:
- Molybdenum strip heating elements
- Vacuum + hydrogen atmosphere
- High-precision temperature control
👉 Enabling:
- Material purification
- Hydrogen annealing
- Small-batch sintering and heat treatment
Vacuum hydrogen furnaces use molybdenum strip heating in controlled atmosphere to achieve stable high-temperature processing and oxide reduction
⚙️ Core Applications
This laboratory hydrogen furnace is widely used in:
- Scientific research institutes
- University laboratories
- R&D centers
- Pilot production lines
👉 Typical applications:
- Hydrogen annealing of metals
- Degassing of precious metals
- Ceramic sintering experiments
- Glass-metal sealing and brazing
Hydrogen atmosphere enables effective oxide reduction and high-purity processing
🔬 Working Principle (Vacuum + Hydrogen Processing)
The system operates under vacuum and hydrogen protection:
- Samples are loaded into the chamber
- Vacuum removes air and contaminants
- Hydrogen gas is introduced
- Heating system raises temperature
- Oxides are reduced and materials are purified
👉 Result:
- Clean material surface
- Improved purity
- Enhanced material performance
Hydrogen acts as a strong reducing agent, preventing oxidation during high-temperature processing
⭐ Key Features & Advantages
✔ Laboratory-Scale Design (Core Advantage)
- Compact chamber size
- Ideal for R&D and small batch production
✔ High Temperature Control Accuracy
- Precise PID temperature control
- Excellent process repeatability
✔ Fast Heating Performance
- Heating rate:
- ~10°C/min (≤1400°C)
✔ Excellent Temperature Uniformity
- Optimized thermal field design
- Uniform heating distribution
✔ Molybdenum Heating System
- High-performance molybdenum strip heaters
- Stable operation at high temperature
✔ Flexible Structure Options

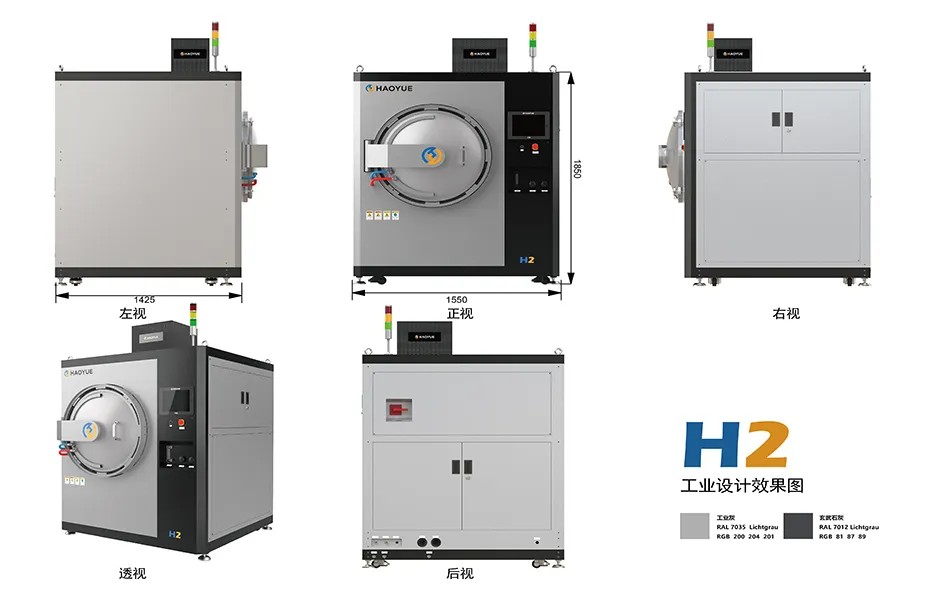

- Vertical structure (top/bottom loading)
- Horizontal structure (side loading)
👉 Adaptable to different lab environments
✔ High Safety Performance
- Over-temperature alarm
- Pressure protection system
- Interlocking safety controls
✔ Easy Operation & Maintenance
- Simple installation
- User-friendly operation
- Low maintenance requirements
📊 Technical Specifications (Strictly Based on Product Data)
Typical Models
| Model | Structure | Loading Type | Chamber Size (mm) | Ultimate Vacuum | Max Temperature |
|---|---|---|---|---|---|
| H2MO16 | Vertical / Horizontal | Flexible | Lab-scale sizes | ≤6.7×10⁻¹ Pa | 1400°C |
📌 Laboratory models are designed with compact chambers and flexible configurations
🏭 Application Fields
This system is ideal for:
- Laboratory research
- Material development
- Small-batch production
- Process testing and validation
👉 Especially suitable for:
- Metal purification experiments
- Hydrogen annealing studies
- Ceramic material R&D
🚀 Why Choose Laboratory Hydrogen Furnace?
👉 Best for R&D and Testing
- Compact and flexible design
👉 Best for High Precision Processing
- Excellent temperature control accuracy
👉 Best for Small Batch Production
- Ideal for pilot-scale validation
⚖️ Laboratory vs Industrial Hydrogen Furnace
| Feature | Laboratory Furnace | Industrial Furnace |
|---|---|---|
| Size | Compact | Large |
| Application | R&D / testing | Mass production |
| Capacity | Small batch | Large batch |
| Flexibility | High | Medium |
| Cost | Lower | Higher |
👉 Recommendation:
- R&D / university → Laboratory furnace
- Production → Industrial hydrogen furnace
⚖️ Position in Product Portfolio
| Series | Function |
|---|---|
| V Series | Vacuum heat treatment |
| P Series | Hot pressing sintering |
| S Series | SPS sintering |
| I Series | Hot isostatic pressing |
| H Series Industrial | Hydrogen heat treatment |
| H Series Laboratory (This Product) | R&D hydrogen processing |
| C Series | CVD / CVI deposition |
🧩 Customization Options
- Chamber size customization
- Vertical or horizontal structure
- Hydrogen control system upgrade
- Automation system integration
🎯 Why Choose Us?
- Professional vacuum hydrogen furnace manufacturer
- Strong expertise in laboratory and industrial furnace systems
- Complete product portfolio for advanced material processing
- Reliable technical support
📩 Get a Quote
Looking for a reliable laboratory vacuum hydrogen furnace supplier?
Contact us today for customized solutions and quotation.
