🧩 Product Overview

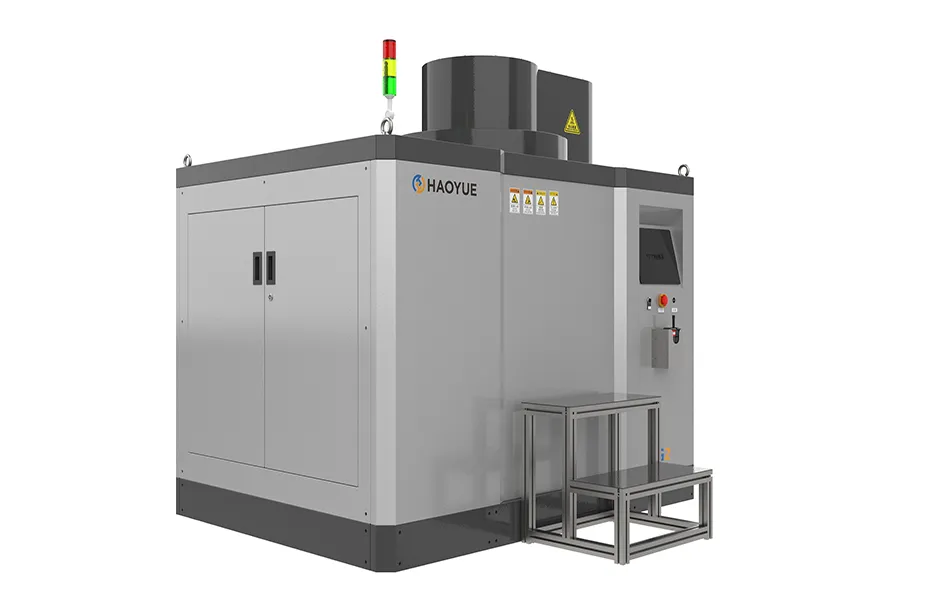

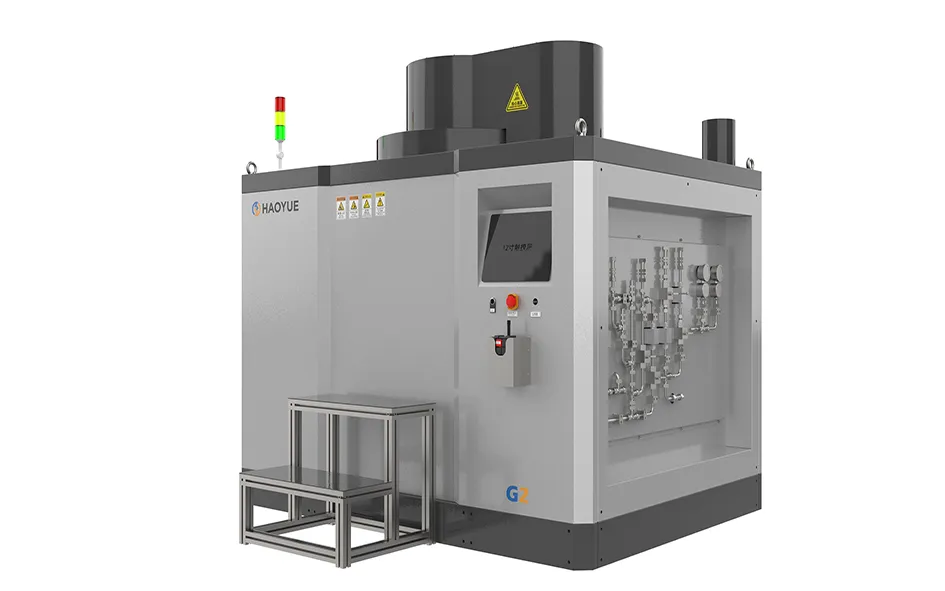

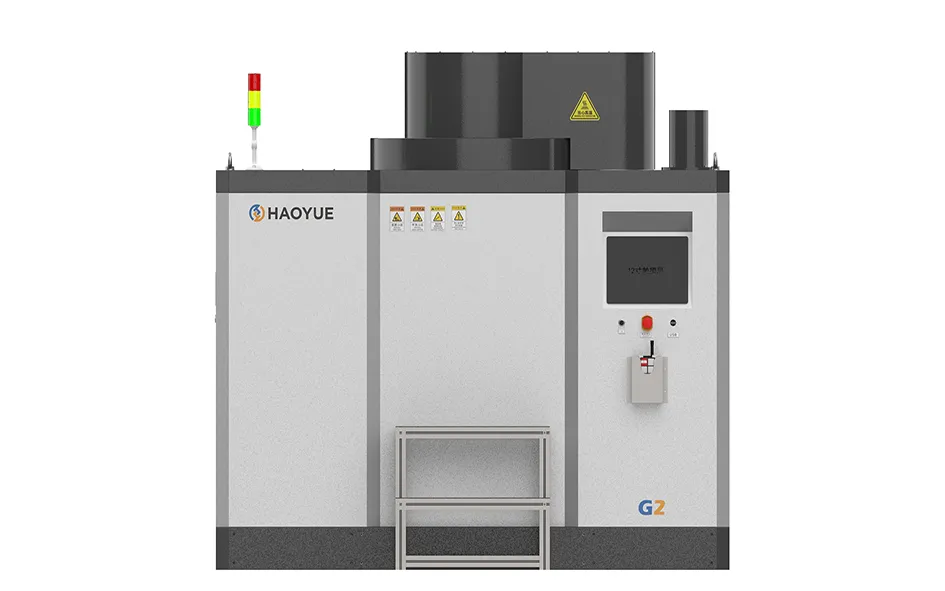

The G Series Vertical Gas Pressure Sintering Furnace is a high-performance sintering system designed for advanced materials processing under high-pressure inert gas atmosphere with a vertical structure.
This system integrates:
- Vacuum degreasing
- Vacuum sintering
- Partial pressure sintering
- High-pressure gas sintering
👉 Combined with:
- Vertical loading structure
- High-pressure nitrogen or argon atmosphere
👉 Enabling:
- High-density material formation
- Improved microstructure uniformity
- Stable and repeatable sintering
Gas pressure sintering improves material performance by applying high-pressure inert gas during high-temperature sintering, increasing density and mechanical strength
🔬 Working Principle (Vertical Gas Pressure Sintering)
The system operates through a multi-stage pressure-controlled process:
- Vacuum degreasing removes binders
- Initial sintering under low pressure
- Transition to high-pressure inert gas (N₂ / Ar)
- Final densification under high pressure
👉 Result:
- Reduced porosity
- Enhanced grain bonding
- Improved mechanical properties
Gas pressure sintering is ideal for materials that cannot achieve full density under conventional sintering processes
⚙️ Core Applications
This furnace is widely used in:
- Silicon nitride (Si₃N₄) ceramics
- Silicon carbide (SiC)
- Zirconia (ZrO₂)
- Alumina (Al₂O₃)
- Cemented carbide
👉 Typical applications:
- Ceramic bearing balls
- Cutting tools
- High-performance structural ceramics
⭐ Key Features & Advantages
✔ Vertical Structure Design (Core Advantage)
- Vertical top or bottom loading
- High positioning accuracy
- Better alignment of molds
👉 Ideal for precision components and uniform sintering
✔ High Pressure Sintering Capability
- High-pressure nitrogen or argon atmosphere
- Typical pressure up to ~9–10 MPa
✔ Excellent Temperature Uniformity
- Temperature uniformity: ±5°C
- Temperature accuracy: ±1°C
✔ High Temperature Capability
- Maximum temperature up to 2000°C
✔ Advanced Heating System
- Graphite heating elements
- Optimized thermal field design
✔ Flexible Loading System
- Vertical upper or bottom loading
- Electro-hydraulic lifting system
👉 Easy operation and reduced labor intensity
✔ High Degree of Automation
- PLC + HMI control system
- Full process automation with safety interlocks
✔ High Safety Performance
- Pressure vessel design standards
- High-pressure valves and piping system
- Multiple safety protections
📊 Technical Specifications (Strictly Based on Product Data)
Typical Models
| Model | Structure | Loading | Chamber Size (mm) | Pressure | Vacuum | Max Temperature |
|---|---|---|---|---|---|---|
| G3VGR20 | Vertical | Top loading | Φ300 × 500 | ≤10 MPa | ≤5–10 Pa | 2000°C |
| G5VGR20 | Vertical | Bottom loading | 500 × 800 | 6–10 MPa | ≤10 Pa | 2000°C |
| G7VGR20 | Vertical | Top/Bottom loading | 700 × 2500 | 6–10 MPa | ≤10 Pa | 2000°C |
📌 All specifications strictly aligned with official product data
🏭 Application Fields
This system is ideal for:
- Advanced ceramics manufacturing
- High-performance structural materials
- Research institutes and pilot production
👉 Especially suitable for:
- Precision ceramic components
- High-consistency batch production
- Materials requiring strict alignment and uniformity
🚀 Why Choose Vertical Gas Pressure Furnace?
👉 Best for Precision Sintering
- Vertical structure ensures better alignment and uniformity
👉 Best for High-Density Ceramics
- High-pressure atmosphere improves densification
👉 Best for Process Stability
- Stable thermal and pressure distribution
⚖️ Vertical vs Horizontal Gas Pressure Furnace
| Feature | Vertical Type | Horizontal Type |
|---|---|---|
| Structure | Vertical loading | Side loading |
| Precision | Higher | Standard |
| Loading Accuracy | High | Medium |
| Production Scale | Medium | Large |
| Application | Precision parts | Mass production |
👉 Recommendation:
- Precision components → Vertical furnace
- Mass production → Horizontal furnace
⚖️ Position in Product Portfolio
| Series | Function |
|---|---|
| V Series | Vacuum heat treatment |
| P Series | Hot pressing sintering |
| S Series | SPS sintering |
| I Series | Hot isostatic pressing |
| G Series (This Product) | Gas pressure sintering |
| C Series | CVD / CVI deposition |
🧩 Customization Options
- Chamber size customization
- Pressure system configuration
- Gas control system
- Automation integration
🎯 Why Choose Us?
- Professional gas pressure sintering furnace manufacturer
- Complete sintering technology portfolio
- Strong expertise in advanced ceramics processing
- Reliable technical support
📩 Get a Quote
Looking for a reliable vertical gas pressure sintering furnace supplier?
Contact us today for customized solutions and quotation.
