🧩 Product Overview

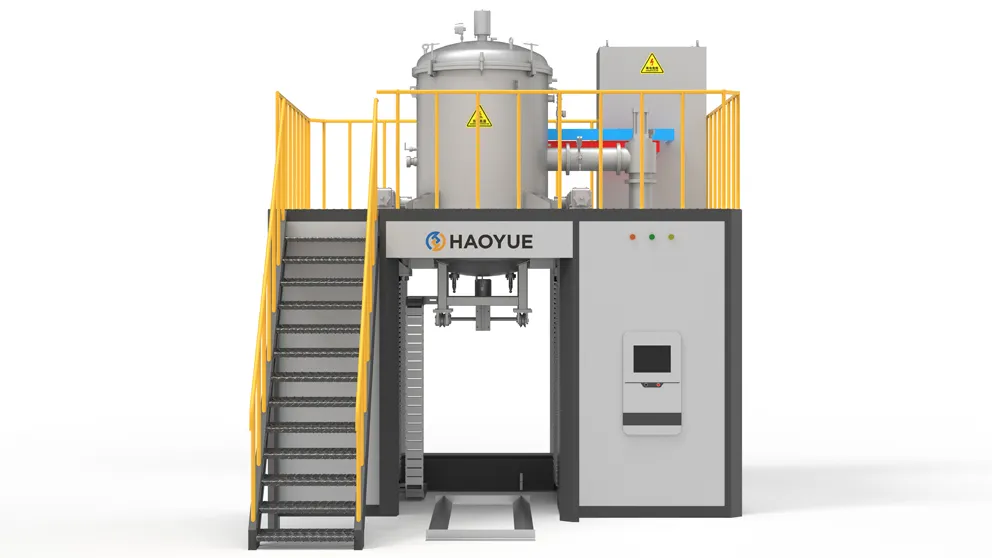

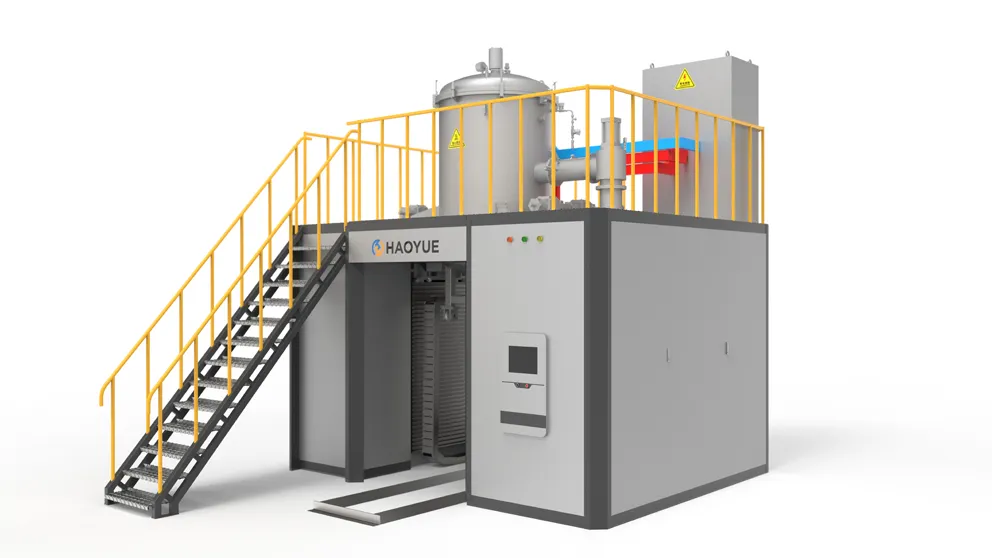

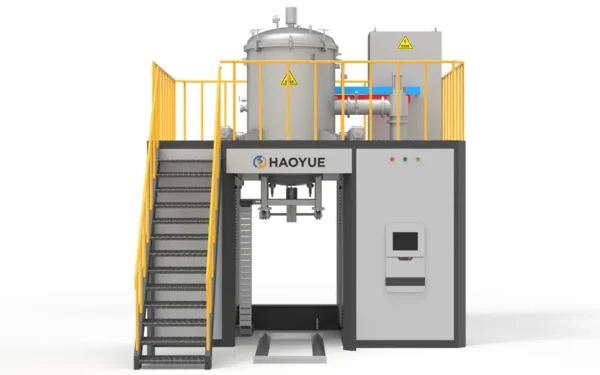

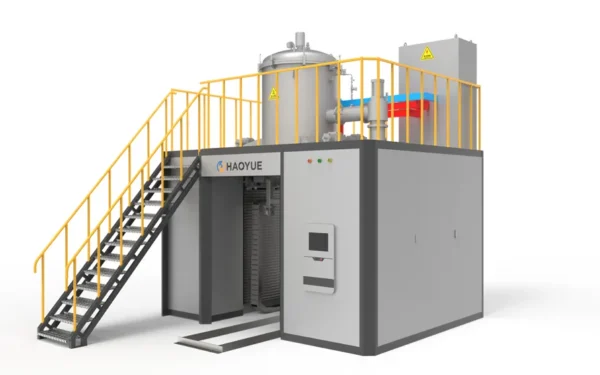

The H Series Vacuum Hydrogen Furnace is a high-performance vacuum resistance furnace designed for heat treatment, sintering, and purification processes under hydrogen atmosphere.
This system uses:
- Molybdenum strip heating elements
- Hydrogen protective atmosphere
- Vacuum environment
👉 Enabling:
- Oxide reduction
- Metal purification
- High-temperature annealing
Vacuum hydrogen furnaces are widely used for high-temperature processing of metals, ceramics, and composite materials under controlled atmosphere conditions
⚙️ Core Applications
This furnace is widely used in:
- Tool steel, mold steel, high-speed steel
- Stainless steel and non-ferrous metals
- Magnetic materials
- Ceramic and composite materials
👉 Typical applications:
- Hydrogen atmosphere annealing
- Degassing of precious metals
- Brazing and sealing of glass-metal components
- Metal purification and reduction processes
🔬 Working Principle (Vacuum Hydrogen Processing)
The system operates using vacuum + hydrogen atmosphere:
- Workpieces are loaded into the furnace chamber
- Vacuum is established to remove air and contaminants
- Hydrogen gas is introduced as a protective/reducing atmosphere
- Heating system raises temperature
- Oxides are reduced and material purity is improved
👉 Result:
- Clean metal surface
- Reduced oxidation
- Improved material properties
Hydrogen acts as a strong reducing agent, making it ideal for high-purity heat treatment processes
⭐ Key Features & Advantages
✔ Hydrogen Atmosphere Processing (Core Advantage)
- Strong reducing capability
- Prevents oxidation
- Improves material purity
✔ Molybdenum Heating System
- Molybdenum strip heating elements
- Excellent high-temperature mechanical performance
✔ Excellent Temperature Uniformity
- Optimized thermal field design
- Uniform heating distribution
- Stable long-term operation
✔ Fast Heating Performance
- Heating rate:
- 10°C/min (≤1400°C)
✔ High Temperature Control Accuracy
- Precise temperature control system
- Stable process repeatability
✔ Vertical & Horizontal Structure Options

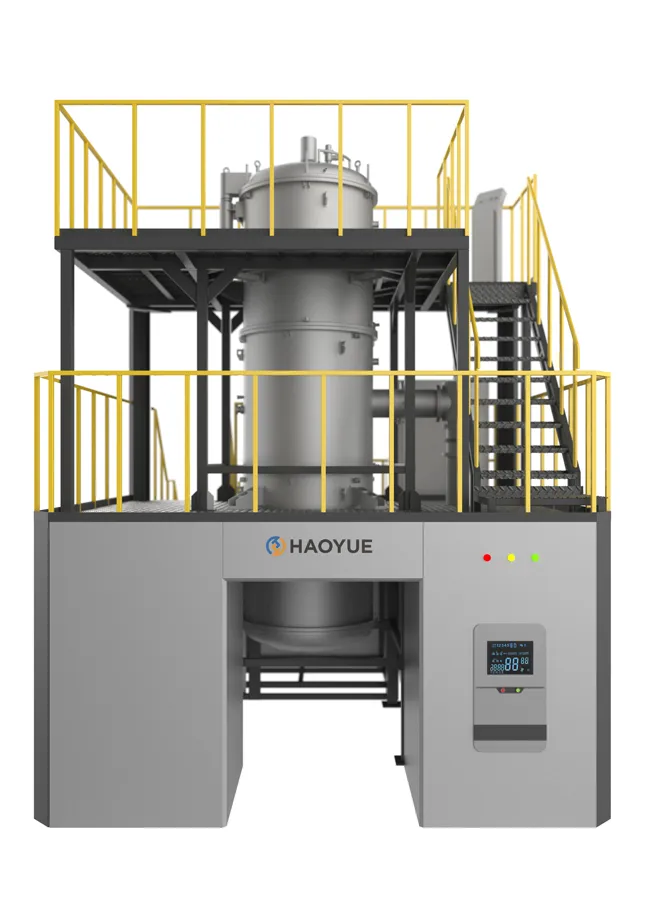

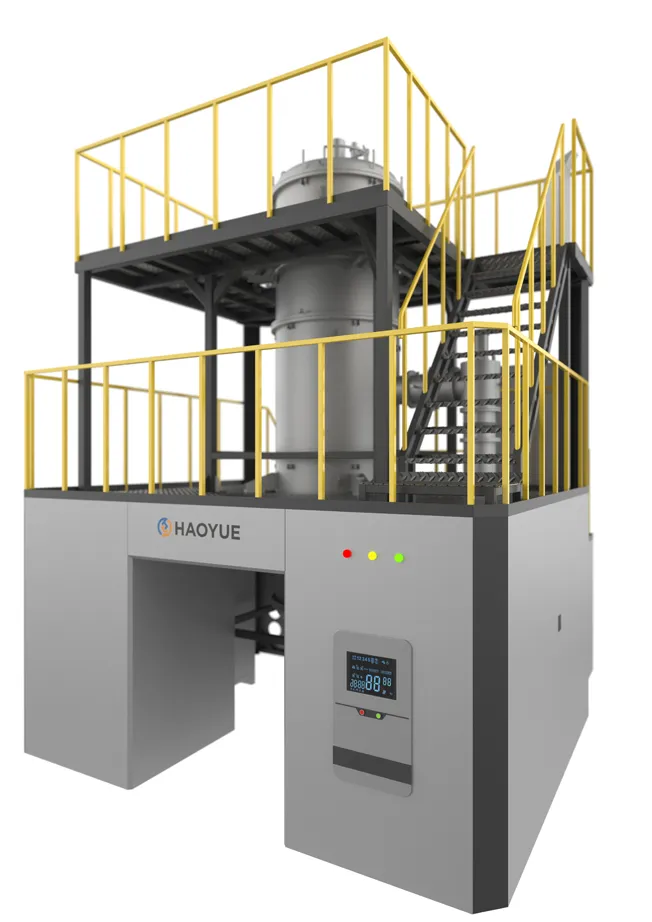

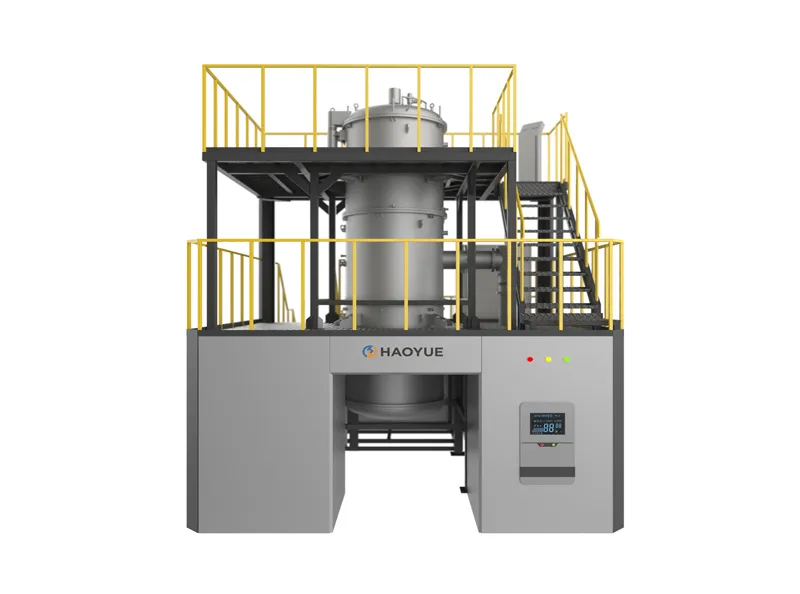

- Vertical (top/bottom loading)
- Horizontal (side loading)
👉 Flexible for different production requirements
✔ Advanced Structural Design
- Double-layer SUS304 stainless steel shell
- Optimized airflow and thermal field
- Modular insulation system
✔ High Safety Performance
- Over-temperature and pressure alarms
- Mechanical pressure protection
- Interlocking safety system
✔ Low Operating Cost
- Energy-efficient design
- Simple installation and maintenance
- Long service life
📊 Technical Specifications (Strictly Based on Product Data)
Typical Models
| Model | Structure | Loading Type | Chamber Size (mm) | Ultimate Vacuum | Max Temperature |
|---|---|---|---|---|---|
| V65/120V | Vertical | Bottom Loading | 650 × 1200 | 6.7×10⁻¹ Pa | 1400°C |
| V65/320V | Vertical | Top Loading | 650 × 3200 | 6.7×10⁻¹ Pa | 1400°C |
| V6MO14 | Horizontal | Side Loading | 600 × 600 × 900 | 6.7×10⁻¹ Pa | 1400°C |
| V7MO14 | Horizontal | Side Loading | 700 × 700 × 1000 | 6.7×10⁻¹ Pa | 1400°C |
| V8MO14 | Horizontal | Side Loading | 800 × 800 × 1200 | 6.7×10⁻¹ Pa | 1400°C |
| V10MO14 | Horizontal | Side Loading | 1000 × 1000 × 1400 | 6.7×10⁻¹ Pa | 1400°C |
📌 All specifications strictly aligned with official product data
🏭 Application Fields
This system is ideal for:
- Heat treatment industry
- Metal processing industry
- Semiconductor and electronic materials
- Advanced materials manufacturing
👉 Especially suitable for:
- Hydrogen annealing
- Metal degassing
- Oxide reduction processes
- High-purity material processing
🚀 Why Choose H Series Vacuum Hydrogen Furnace?
👉 Best for Metal Purification
- Hydrogen atmosphere removes oxides effectively
👉 Best for Heat Treatment
- Ideal for steels, alloys, and magnetic materials
👉 Best for Controlled Atmosphere Processing
- Stable and precise hydrogen environment
⚖️ Position in Product Portfolio
| Series | Function |
|---|---|
| V Series | Vacuum heat treatment |
| P Series | Hot pressing sintering |
| S Series | SPS sintering |
| I Series | Hot isostatic pressing |
| H Series (This Product) | Hydrogen atmosphere heat treatment |
| C Series | CVD / CVI deposition |
👉 Key difference:
- V Series → Vacuum only
- H Series → Vacuum + Hydrogen (reduction & purification)
🧩 Customization Options
- Vertical or horizontal structure
- Chamber size customization
- Hydrogen control system upgrade
- Automation system integration
🎯 Why Choose Us?
- Professional vacuum hydrogen furnace manufacturer
- Strong expertise in heat treatment and atmosphere control
- Complete furnace product portfolio
- Reliable technical and after-sales support
📩 Get a Quote
Looking for a reliable vacuum hydrogen furnace supplier?
Contact us today for customized solutions and quotation.
