🧩 Product Overview

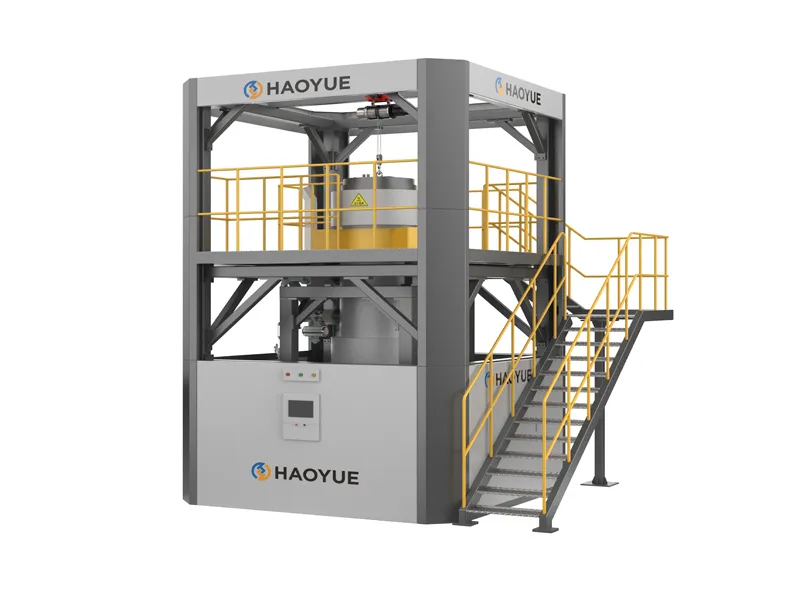

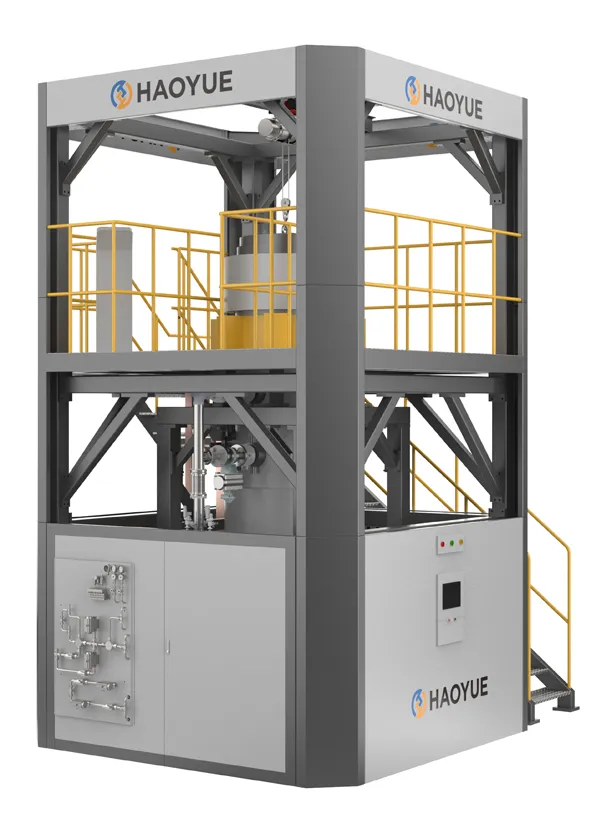

The G Series Vertical Gas Pressure Furnace is a high-performance thermal processing system designed for high-pressure operations under inert gas atmosphere with a vertical structure.
This system supports multiple processes:
- Gas pressure sintering
- Partial pressure sintering
- Vacuum sintering
- Degreasing and thermal processing
👉 Combined with:
- Vertical chamber design
- High-pressure nitrogen or argon atmosphere
👉 Enabling:
- High-density material processing
- Uniform thermal distribution
- Stable and repeatable production
Gas pressure furnaces operate by applying high-pressure inert gas during high-temperature processing, improving densification and material performance
🔬 Working Principle (High Pressure Gas Processing)
The system operates through a multi-stage thermal and pressure-controlled process:
- Vacuum stage removes air and contaminants
- Heating begins under controlled pressure
- Gas pressure (N₂ / Ar) increases during high-temperature phase
- Material undergoes densification or heat treatment
👉 Result:
- Reduced porosity
- Improved mechanical properties
- Enhanced material consistency
Gas pressure processing is widely used for materials that require higher density and better performance than conventional sintering can achieve
⚙️ Core Applications
This furnace is widely used in:
- Advanced ceramics (Si₃N₄, SiC, Al₂O₃, ZrO₂)
- Cemented carbide materials
- Powder metallurgy
- Composite materials
👉 Typical applications:
- Ceramic components
- Cutting tools
- Structural materials
- High-performance industrial parts
⭐ Key Features & Advantages
✔ Vertical Structure Design (Core Advantage)
- Vertical top or bottom loading
- High positioning accuracy
- Better alignment of components
👉 Ideal for precision processing and uniform sintering
✔ High Pressure Capability
- High-pressure nitrogen or argon atmosphere
- Typical pressure up to ~9–10 MPa
✔ High Temperature Capability
- Maximum temperature up to 2000°C
✔ Excellent Temperature Uniformity
- Temperature uniformity: ±5°C
- Temperature accuracy: ±1°C
✔ Advanced Heating System
- Graphite heating elements
- Optimized thermal field design
✔ Flexible Loading System
- Vertical lifting mechanism
- Electro-hydraulic operation
👉 Easy handling and reduced labor intensity
✔ Multi-Function Integration
- Degreasing + sintering + pressure processing in one system
✔ High Degree of Automation
- PLC + HMI control system
- Fully automated process control
✔ High Safety Performance
- Pressure vessel design
- Over-pressure and over-temperature protection
- Safety interlock system
📊 Technical Specifications (Strictly Based on Product Data)
Typical Models
| Model | Structure | Loading | Chamber Size (mm) | Pressure | Vacuum | Max Temperature |
|---|---|---|---|---|---|---|
| G3VGR20 | Vertical | Top loading | Φ300 × 500 | ≤9–10 MPa | ≤5 Pa | 2000°C |
| G5VGR20 | Vertical | Bottom loading | 500 × 800 | 6–10 MPa | ≤10 Pa | 2000°C |
| G7VGR20 | Vertical | Top/Bottom loading | 700 × 2500 | 6–10 MPa | ≤10 Pa | 2000°C |
📌 All specifications are aligned with official product data
🏭 Application Fields
This system is ideal for:
- Advanced ceramics manufacturing
- High-performance material processing
- Research institutes and industrial production
👉 Especially suitable for:
- Precision ceramic components
- High-density structural materials
- Controlled atmosphere processing
🚀 Why Choose Vertical Gas Pressure Furnace?
👉 Best for Precision and Uniformity
- Vertical structure improves alignment and consistency
👉 Best for High-Performance Materials
- High pressure enhances densification and strength
👉 Best for Process Stability
- Stable pressure and temperature control
⚖️ Vertical Gas Pressure Furnace vs Sintering Furnace
| Feature | Vertical Gas Pressure Furnace | Vertical Gas Pressure Sintering Furnace |
|---|---|---|
| Positioning | Equipment platform | Process-focused equipment |
| Function | Multi-process (general) | Sintering-focused |
| Flexibility | High | Medium |
| Application | Broad | Ceramic-focused |
👉 Recommendation:
- Multi-process needs → This product
- Dedicated sintering → Vertical sintering furnace
⚖️ Position in Product Portfolio
| Series | Function |
|---|---|
| V Series | Vacuum heat treatment |
| P Series | Hot pressing sintering |
| S Series | SPS sintering |
| I Series | Hot isostatic pressing |
| G Series (This Product) | Gas pressure processing |
| C Series | CVD / CVI deposition |
🧩 Customization Options
- Chamber size customization
- Pressure system configuration
- Gas control system
- Automation integration
🎯 Why Choose Us?
- Professional gas pressure furnace manufacturer
- Complete sintering and heat treatment portfolio
- Strong expertise in advanced materials processing
- Reliable technical support
📩 Get a Quote
Looking for a reliable vertical gas pressure furnace supplier?
Contact us today for customized solutions and quotation.
