🧩 Product Overview

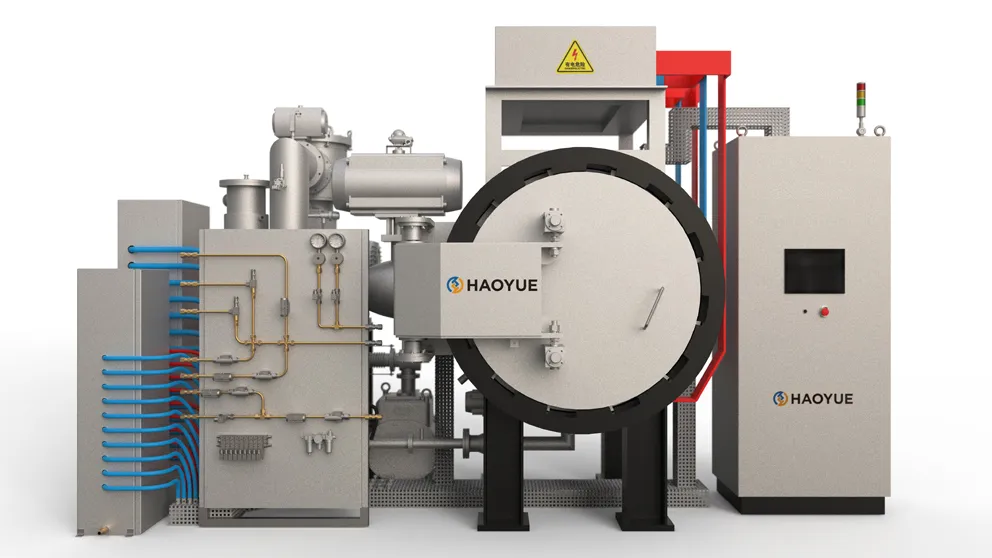

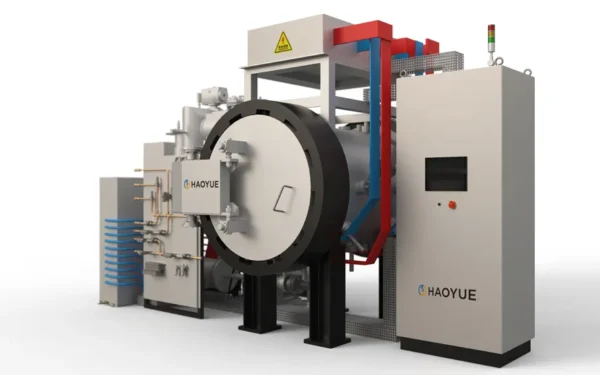

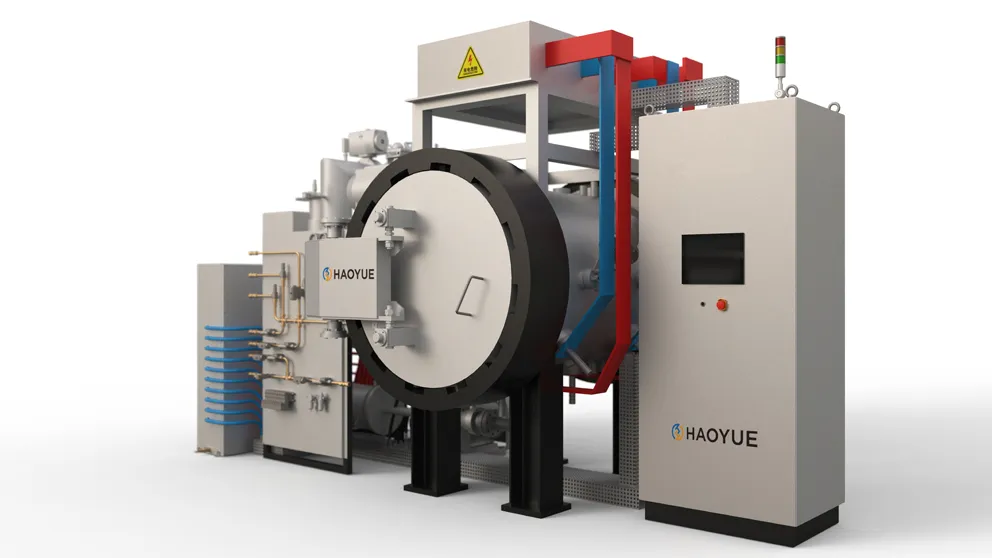

The G Series Gas Pressure Horizontal Type Sintering Furnace is a high-performance sintering system designed for densification of advanced materials under high-pressure inert gas atmosphere.
This system integrates multiple processes:
- Positive pressure dewaxing
- Vacuum degreasing
- Vacuum sintering
- Partial pressure sintering
- High-pressure gas sintering
👉 Enabling:
- Higher material density
- Improved mechanical strength
- Reduced porosity
Gas pressure sintering enhances material performance by applying high-pressure nitrogen or argon during sintering, significantly improving densification and mechanical properties
🔬 Working Principle (Gas Pressure Sintering)
The system operates through a multi-stage pressure-controlled sintering process:
- Degreasing (vacuum or partial pressure)
- Initial sintering under low pressure
- Transition to high-pressure inert gas (N₂ / Ar)
- Final densification under high pressure
👉 Result:
- Improved grain bonding
- Reduced residual porosity
- Enhanced strength and toughness
Gas pressure sintering is especially suitable for materials that cannot achieve full density under conventional sintering conditions
⚙️ Core Applications
This furnace is widely used in:
- Silicon nitride (Si₃N₄) ceramics
- Silicon carbide (SiC)
- Zirconia (ZrO₂)
- Alumina (Al₂O₃)
- Cemented carbide materials
👉 Typical applications:
- Ceramic cutting tools
- Ceramic bearing balls
- High-performance structural ceramics
Gas pressure sintering under nitrogen or argon significantly improves density and mechanical properties of ceramic components
⭐ Key Features & Advantages
✔ High Pressure Sintering Capability (Core Advantage)
- High-pressure nitrogen or argon atmosphere
- Improves densification and material strength
✔ Multi-Function Integrated System
- Degreasing + sintering + pressure sintering in one furnace
👉 Reduces process steps and production cost
✔ Excellent Temperature Uniformity
- Optimized furnace liner and heater layout
- Uniform thermal field distribution
✔ Good Degreasing Performance
- Special degreasing chamber structure
- Clean internal environment without contamination
✔ Horizontal Structure Design
- Side loading configuration
- Easy loading, unloading, and maintenance
✔ High Degree of Automation
- Fully automatic process control
- PLC-based system
✔ Advanced Thermal Field Design
- Thermal simulation optimized
- Modular heating and insulation system
✔ High Safety Performance
- Over-temperature and over-pressure alarms
- Mechanical pressure protection system
- Interlocking safety system
📊 Technical Specifications (Strictly Based on Product Data)
| Model | Structure | Loading | Chamber Size (mm) | Gas Pressure | Vacuum | Max Temperature |
|---|---|---|---|---|---|---|
| G4HGR20 | Horizontal | Side loading | 400 × 400 × 1200 | 6–10 MPa | 10 Pa | 2000°C |
| G5HGR20 | Horizontal | Side loading | 500 × 500 × 1800 | 6–10 MPa | 10 Pa | 2000°C |
📌 All specifications strictly aligned with official product data
🏭 Application Fields
This system is ideal for:
- Advanced ceramics manufacturing
- Carbide material production
- Research institutes and pilot production
👉 Especially suitable for:
- Silicon nitride ceramic balls
- Cutting tools
- High-strength ceramic components
🚀 Why Choose G Series Gas Pressure Sintering Furnace?
👉 Best for High-Density Materials
- Higher density than conventional sintering
👉 Best HIP Alternative (Cost Advantage)
- Lower cost compared to HIP
- No shape limitation
👉 Best for Ceramic Performance Upgrade
- Improves strength, hardness, and durability
⚖️ Position in Product Portfolio
| Series | Function |
|---|---|
| V Series | Vacuum heat treatment |
| P Series | Hot pressing sintering |
| S Series | SPS sintering |
| I Series | Hot isostatic pressing (HIP) |
| G Series (This Product) | Gas pressure sintering |
| C Series | CVD / CVI deposition |
⚔️ Gas Pressure Sintering vs HIP vs Hot Press
| Process | Pressure Type | Shape Limitation | Cost | Density |
|---|---|---|---|---|
| Gas Pressure Sintering | Gas pressure | No limitation | Medium | High |
| HIP | Isostatic gas pressure | No limitation | High | Very high |
| Hot Press (P Series) | Uniaxial pressure | Limited | Medium | High |
👉 Recommendation:
- Complex shapes → G Series
- Highest density → HIP
- Simple shapes → Hot Press
🧩 Customization Options
- Chamber size customization
- Pressure system upgrade
- Gas atmosphere configuration
- Automation system integration
🎯 Why Choose Us?
- Professional gas pressure sintering furnace manufacturer
- Complete sintering technology portfolio
- Strong expertise in advanced ceramics processing
- Reliable technical support
📩 Get a Quote
Looking for a reliable gas pressure sintering furnace supplier?
Contact us today for customized solutions and quotation.
