G Series Horizontal Gas Pressure Sintering Furnace Technical Overview
G Series Horizontal Gas Pressure Sintering Furnace is a HAOYUE g series horizontal gas pressure sintering furnace solution for gas pressure sintering. It is designed for demanding research, pilot-scale testing and industrial production where stable temperature, vacuum, pressure, atmosphere control and process repeatability are required.
G Series Horizontal Gas Pressure Sintering Furnace Applications
- advanced ceramics and silicon nitride sintering
- carbide and technical ceramic component production
- high-temperature processing under controlled pressure
G Series Horizontal Gas Pressure Sintering Furnace Configuration Options
- Chamber size, usable hot zone, loading method and fixture design
- Working temperature, vacuum level, pressure, atmosphere and cooling method
- Graphite, molybdenum, tungsten or customized hot zone configuration
- PLC control, recipe management, data recording and safety interlock options
Related HAOYUE Furnace Systems
Send material type, part size, target temperature, pressure or atmosphere requirement and production capacity. Contact HAOYUE engineers to request a technical proposal for the g series horizontal gas pressure sintering furnace.
🧩 Product Overview

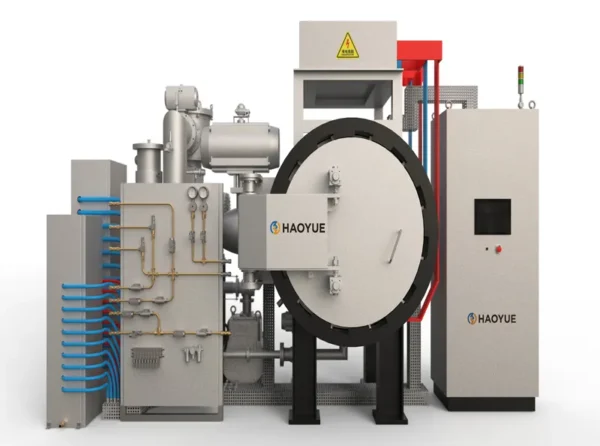

The G Series Gas Pressure Horizontal Type Sintering Furnace is a high-performance sintering system designed for densification of advanced materials under high-pressure inert gas atmosphere.
This system integrates multiple processes:
- Positive pressure dewaxing
- Vacuum degreasing
- Vacuum sintering
- Partial pressure sintering
- High-pressure gas sintering
👉 Enabling:
- Higher material density
- Improved mechanical strength
- Reduced porosity
Gas pressure sintering enhances material performance by applying high-pressure nitrogen or argon during sintering, significantly improving densification and mechanical properties
🔬 Working Principle (Gas Pressure Sintering)
The system operates through a multi-stage pressure-controlled sintering process:
- Degreasing (vacuum or partial pressure)
- Initial sintering under low pressure
- Transition to high-pressure inert gas (N₂ / Ar)
- Final densification under high pressure
👉 Result:
- Improved grain bonding
- Reduced residual porosity
- Enhanced strength and toughness
Gas pressure sintering is especially suitable for materials that cannot achieve full density under conventional sintering conditions
⚙️ Core Applications
This furnace is widely used in:
- Silicon nitride (Si₃N₄) ceramics
- Silicon carbide (SiC)
- Zirconia (ZrO₂)
- Alumina (Al₂O₃)
- Cemented carbide materials
👉 Typical applications:
- Ceramic cutting tools
- Ceramic bearing balls
- High-performance structural ceramics
Gas pressure sintering under nitrogen or argon significantly improves density and mechanical properties of ceramic components
⭐ Key Features & Advantages
✔ High Pressure Sintering Capability (Core Advantage)
- High-pressure nitrogen or argon atmosphere
- Improves densification and material strength
✔ Multi-Function Integrated System
- Degreasing + sintering + pressure sintering in one furnace
👉 Reduces process steps and production cost
✔ Excellent Temperature Uniformity
- Optimized furnace liner and heater layout
- Uniform thermal field distribution
✔ Good Degreasing Performance
- Special degreasing chamber structure
- Clean internal environment without contamination
✔ Horizontal Structure Design
- Side loading configuration
- Easy loading, unloading, and maintenance
✔ High Degree of Automation
- Fully automatic process control
- PLC-based system
✔ Advanced Thermal Field Design
- Thermal simulation optimized
- Modular heating and insulation system
✔ High Safety Performance
- Over-temperature and over-pressure alarms
- Mechanical pressure protection system
- Interlocking safety system
📊 Technical Specifications (Strictly Based on Product Data)
| Model | Structure | Loading | Chamber Size (mm) | Gas Pressure | Vacuum | Max Temperature |
|---|---|---|---|---|---|---|
| G4HGR20 | Horizontal | Side loading | 400 × 400 × 1200 | 6–10 MPa | 10 Pa | 2000°C |
| G5HGR20 | Horizontal | Side loading | 500 × 500 × 1800 | 6–10 MPa | 10 Pa | 2000°C |
📌 All specifications strictly aligned with official product data
🏭 Application Fields
This system is ideal for:
- Advanced ceramics manufacturing
- Carbide material production
- Research institutes and pilot production
👉 Especially suitable for:
- Silicon nitride ceramic balls
- Cutting tools
- High-strength ceramic components
🚀 Why Choose G Series Gas Pressure Sintering Furnace?
👉 Best for High-Density Materials
- Higher density than conventional sintering
👉 Best HIP Alternative (Cost Advantage)
- Lower cost compared to HIP
- No shape limitation
👉 Best for Ceramic Performance Upgrade
- Improves strength, hardness, and durability
⚖️ Position in Product Portfolio
| Series | Function |
|---|---|
| V Series | Vacuum heat treatment |
| P Series | Hot pressing sintering |
| S Series | SPS sintering |
| I Series | Hot isostatic pressing (HIP) |
| G Series (This Product) | Gas pressure sintering |
| C Series | CVD / CVI Deposition |
⚔️ Gas Pressure Sintering vs HIP vs Hot Press
| Process | Pressure Type | Shape Limitation | Cost | Density |
|---|---|---|---|---|
| Gas Pressure Sintering | Gas pressure | No limitation | Medium | High |
| HIP | Isostatic gas pressure | No limitation | High | Very high |
| Hot Press (P Series) | Uniaxial pressure | Limited | Medium | High |
👉 Recommendation:
- Complex shapes → G Series
- Highest density → HIP
- Simple shapes → Hot Press
🧩 Customization Options
- Chamber size customization
- Pressure system upgrade
- Gas atmosphere configuration
- Automation system integration
🎯 Why Choose Us?
- Professional gas pressure sintering furnace manufacturer
- Complete sintering technology portfolio
- Strong expertise in advanced ceramics processing
- Reliable technical support
📩 Get a Quote
Looking for a reliable gas pressure sintering furnace supplier?
Contact us today for customized solutions and quotation.
