Why Hard Alloy Tools Need Vacuum Sintering
Hard alloy tools—such as tungsten carbide (WC-Co) cutting inserts, end mills, and drilling bits—are the backbone of modern machining. Their performance depends critically on the sintering process. In conventional atmosphere sintering, residual oxygen and impurities cause grain growth, porosity, and weak binder distribution, all of which reduce tool life and cutting stability.
How Vacuum Eliminates Defects
Vacuum sintering furnaces operate at pressure levels as low as 6.7×10⁻³ Pa (high vacuum), removing 99.9999% of the air. This oxygen-free environment prevents oxidation of tungsten carbide grains and cobalt binder, leading to:
- Higher density: Vacuum-sintered WC-Co reaches >99.5% theoretical density
- Finer grain structure: Inhibited grain coarsening preserves submicron WC grains
- Uniform cobalt distribution: Eliminates pooling, improves transverse rupture strength
Measurable Performance Gains
Vacuum sintering delivers significant improvements vs. conventional methods:
- Hardness: HRA 89-92 → HRA 91-94 (2-3 point improvement)
- Transverse rupture strength: 2000-2500 MPa → 2800-3500 MPa
- Tool life: 30-50% longer cutting life in hardened steel machining
- Edge retention: Chipping rate reduced by up to 60%
Key Furnace Features
HAOYUE vacuum sintering furnaces provide professional features for tool manufacturing:
- Graphite or molybdenum hot zone with ±5°C temperature uniformity
- Precise partial pressure control for binder removal
- Fast convection-assisted cooling for shorter cycles
- PLC-based recipe management for batch-to-batch consistency

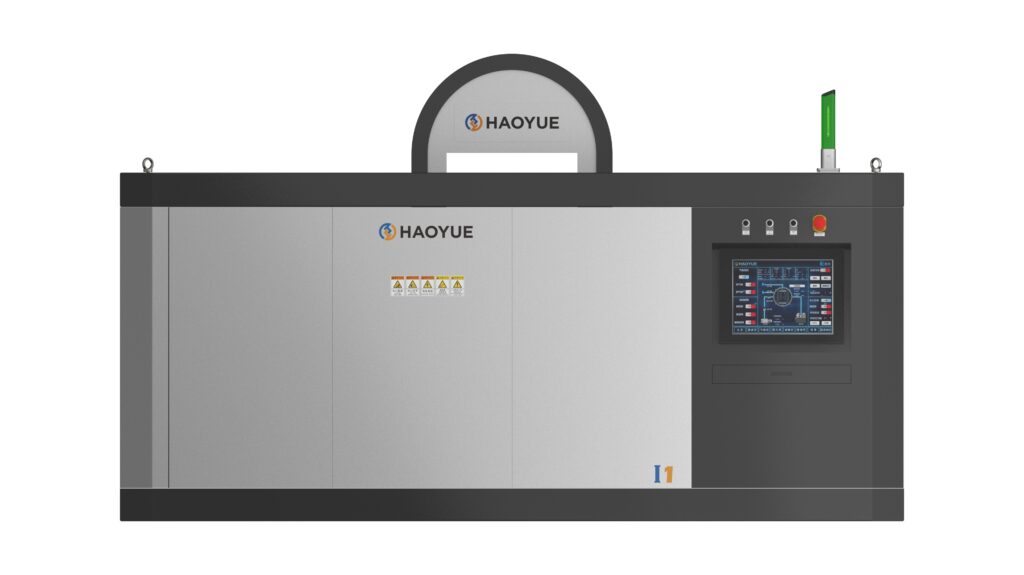

HAOYUE Advantage
HAOYUE vacuum sintering furnaces support max temperature 2200°C, vacuum to 6.7×10⁻³ Pa, and optional over-pressure sintering to 10 bar. ISO 9001 and CE certified. Contact lyle@haoyue-group.com for specifications.
