The Two-Stage Challenge of MIM Sintering
Every MIM part contains a binder system (typically 30-50% by volume) that must be removed before the metal powder can densify. This happens in two stages:
- Debinding (200-600°C): The binder is gradually removed through thermal decomposition. In a vacuum furnace, the controlled pressure allows precise management of gas evolution, preventing defects like blistering or cracking.
- Densification (1100-1400°C): Once the binder is removed, the metal powder particles fuse together through diffusion. Vacuum conditions eliminate trapped gases, allowing the part to reach 96-99% theoretical density.
Why Vacuum Outperforms Atmosphere for MIM
| Parameter | Vacuum Sintering | Atmosphere Sintering |
|---|---|---|
| Final density | 96-99% | 88-94% |
| Surface quality | Clean, oxidation-free | Oxide layer requires post-processing |
| Binder removal | Controlled decomposition | Risk of incomplete removal |
| Material range | Stainless steels, titanium, superalloys | Limited to oxidation-resistant grades |
| Cycle time | 6-12 hours | 8-16 hours |
Critical Parameters for MIM Vacuum Sintering
1. Heating Rate During Debinding
The critical phase is 200-450°C where the binder decomposes. Most MIM vacuum furnaces use a staged ramp: slow heating (3-5°C/min) through the binder burnout zone, followed by faster heating (5-10°C/min) to the sintering temperature.
2. Partial Pressure Control
During binder removal, introducing a small amount of inert gas (partial pressure of 10-100 Pa) helps carry away decomposition byproducts without causing turbulent defects.
3. Sintering Temperature Uniformity
For MIM components, ±5°C uniformity across the entire hot zone is essential. Variation can cause differential shrinkage, warpage, or incomplete densification.
4. Cooling Rate
After sintering, controlled cooling (50-200°C/min) prevents grain growth while maintaining dimensional stability.

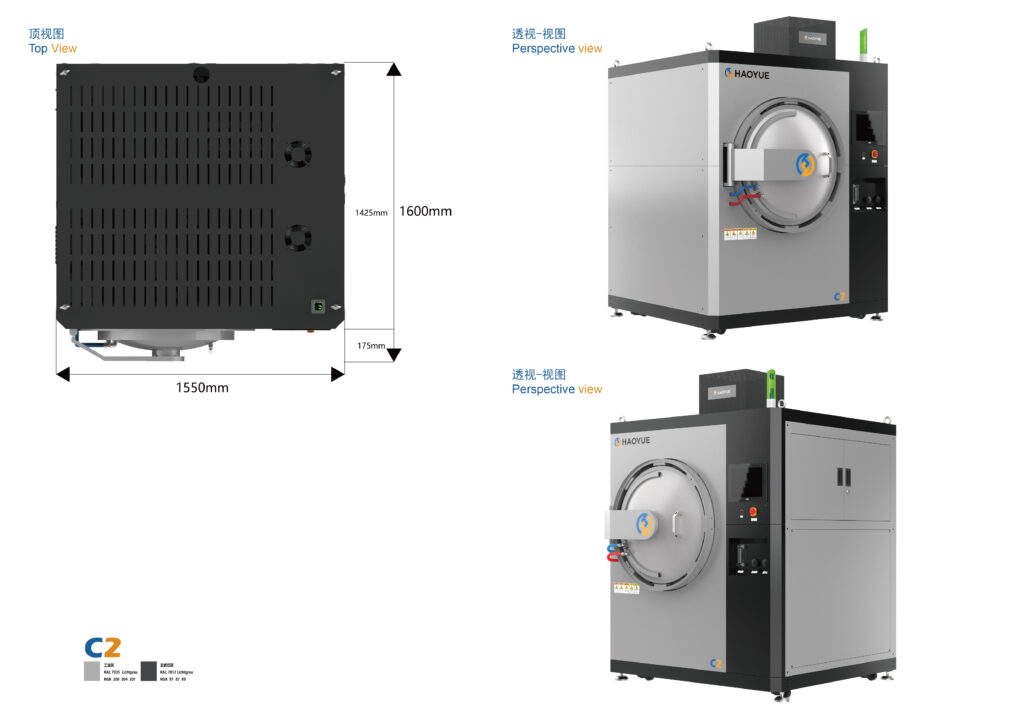

HAOYUE Vacuum Sintering Furnace for MIM
HAOYUE’s vacuum sintering furnaces feature multi-stage programmable temperature control, partial pressure gas injection, hot zone uniformity of ±3°C, and fast cooling up to 200°C/min.
Contact Lyle at lyle@haoyue-group.com or visit www.vacuum-sintering.com for technical specifications.
